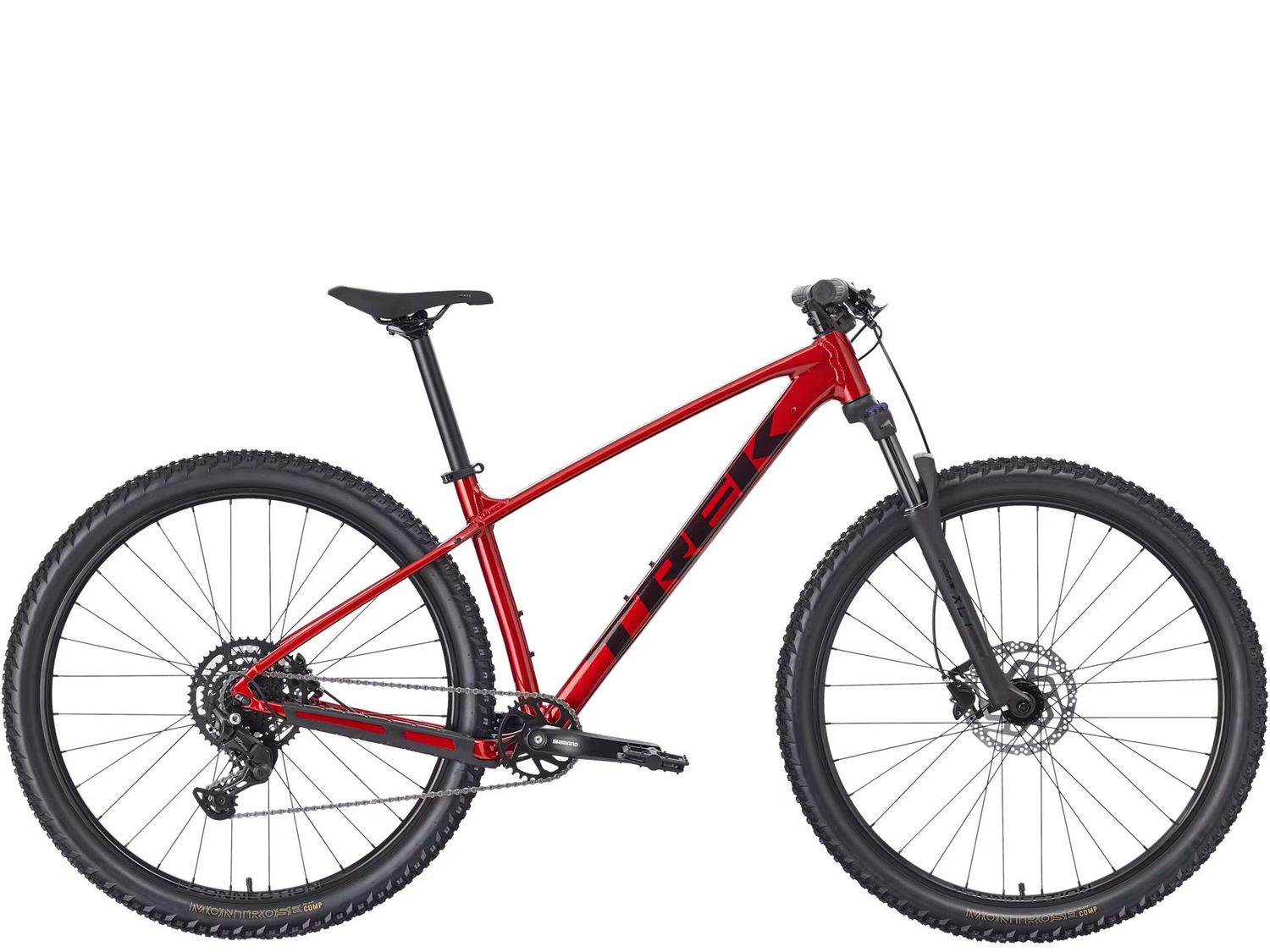

26 MARLIN 5 GEN 3
€699.00
Price incl.
VAT (23%) €130.71
Colour
Please choose
Size
Please choose
In stock
Product Details
Brand:
Trek
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| *Frame | Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|---|---|
| Size: ML , M , L , S , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|
| *Fork | Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
|
| Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
|
|
| Size: ML , M , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
|
Wheels
| *Front Hub | Size: ML , M , XS , L , S , XL , XXL
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
|
|---|---|
| *Front Skewer | Size: ML , M , XS , L , S , XL , XXL
Trek Thru-Skew
|
| *Rear Hub | Size: ML , M , XS , L , S , XL , XXL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
| *Rear Skewer | Size: ML , M , XS , L , S , XL , XXL173x5 mm QR |
| *Rim | Size: ML , M , XS , L , S , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
|
| *Spokes | Size: ML , M , XS , L , S , XL , XXL
14 g stainless steel, black
|
| *Tire | Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
|
| Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
|
|
| Size: ML , M , L , XL , XXL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"
|
|
| Size: ML , M , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
|
Drivetrain
| *Shifter | Size: ML , M , XS , L , S , XL , XXL
Shimano U4000, 9-speed
|
|---|---|
| *Rear Derailleur | Size: ML , M , XS , L , S , XL , XXL
Shimano CUES U4000
|
| *Crank | Size: ML , M , XS , S
Shimano CUES U4001, 32T, 52mm chain line, 170 mm length
|
| Size: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length
|
|
| *Bottom Bracket | Size: ML , M , XS , L , S , XL , XXL
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
|
| *Cassette | Size: ML , M , XS , L , S , XL , XXL
Shimano LINKGLIDE LG300, 11-46, 9-speed
|
| *Chain | Size: ML , M , XS , L , S , XL , XXL
Shimano LG500
|
| *Pedal | Size: ML , M , XS , L , S , XL , XXLVP-536 nylon platform |
Components
| *Saddle | Size: ML , M , XS , L , S , XL , XXLBontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: M , XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
|
| Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
|
|
| *Handlebar | Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
|
| Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
|
|
| Size: ML , M , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
|
| *Grips | Size: ML , M , XS , L , S , XL , XXLTrek Line Comp, nylon lock-on |
| *Stem | Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
|
| Size: ML , M , LBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | |
| Size: XLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length | |
| Size: XXLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
| *Headset | Size: ML , M , XS , L , S , XL , XXL
Semi-integrated, 1-1/8"
|
| *Brake | Size: ML , M , L , XL , XXL
Shimano MT200 hydraulic disc
|
| *Brake Rotor | Size: ML , M , XS , L , S , XL , XXL
Shimano RT26, 6-bolt, 160 mm
|
| Size: ML , M , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm
|
|
| *Brake Set | Size: ML , M , XS , L , S , XL , XXL
Shimano MT200 hydraulic disc
|
Weight
| Weight | M - 15.10 kg / 33.29 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
