Online store

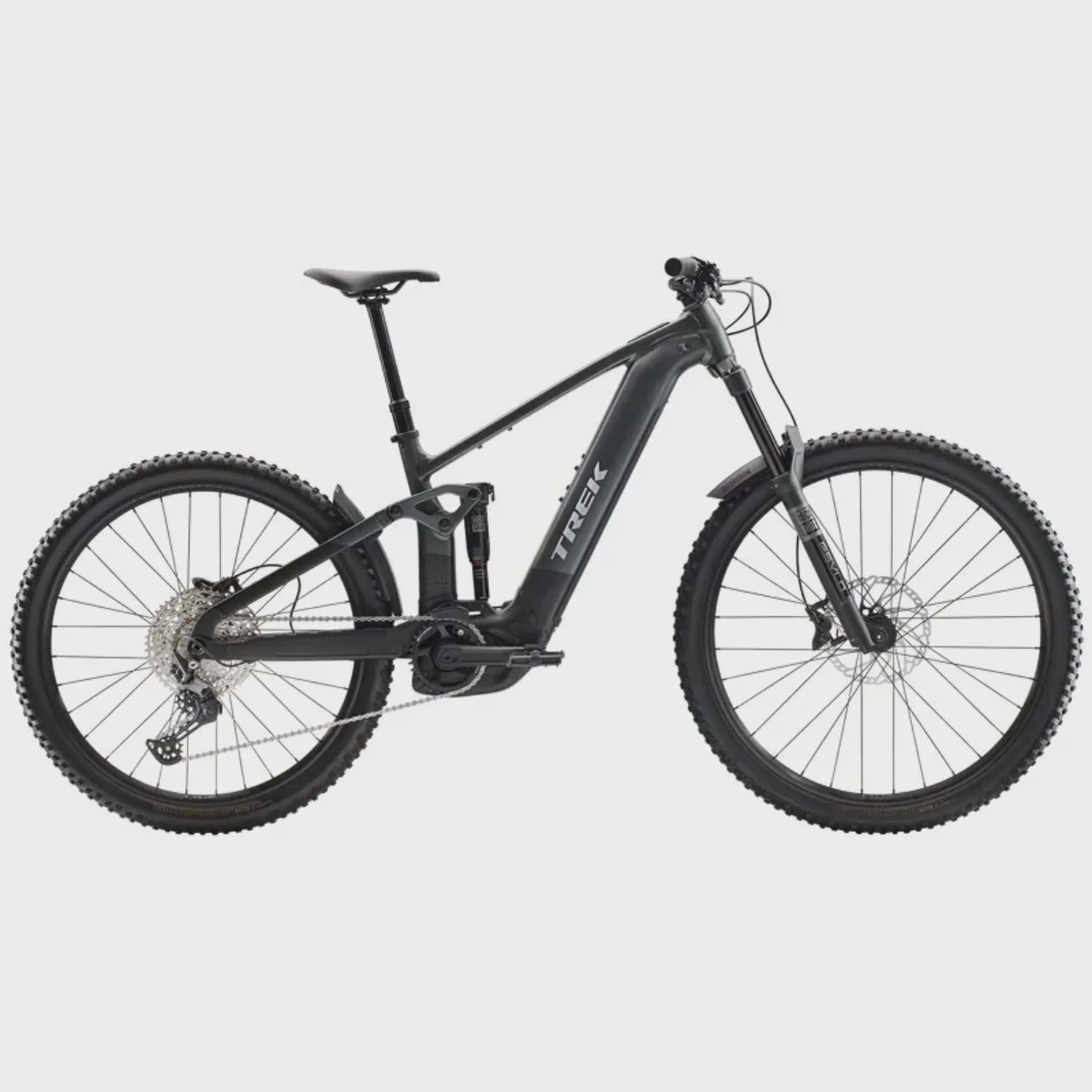

Rail+ 5 Gen 5 Lithium Grey Large
€5,679.00
Price incl.
VAT (23%) €1,061.93
In stock: 1 available
Product Details
Brand:
Trek
The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
| Frame |
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
| Shock | RockShox Deluxe Select+ RT, 205 mm x 65mm |
| Max compatible fork travel | 180 mm |
Wheels
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre | Size: S, M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
| Size: M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 27.5x2.60", Fork: See manufacturer |
E-system
| Battery | Bosch PowerTube 800 Wh, smart system |
|---|---|
| Charger | Bosch standard 2A, 230V, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
Drivetrain
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 36T |
Components
| Saddle | Bontrager Verse P3, steel rails |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm |
| Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
|
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT66, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer |
Accessories
| Mudguard | Trek 27.5" custom fender |
|---|
Weight
| Weight | M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Save this product for later
Rail+ 5 Gen 5 Lithium Grey Large
