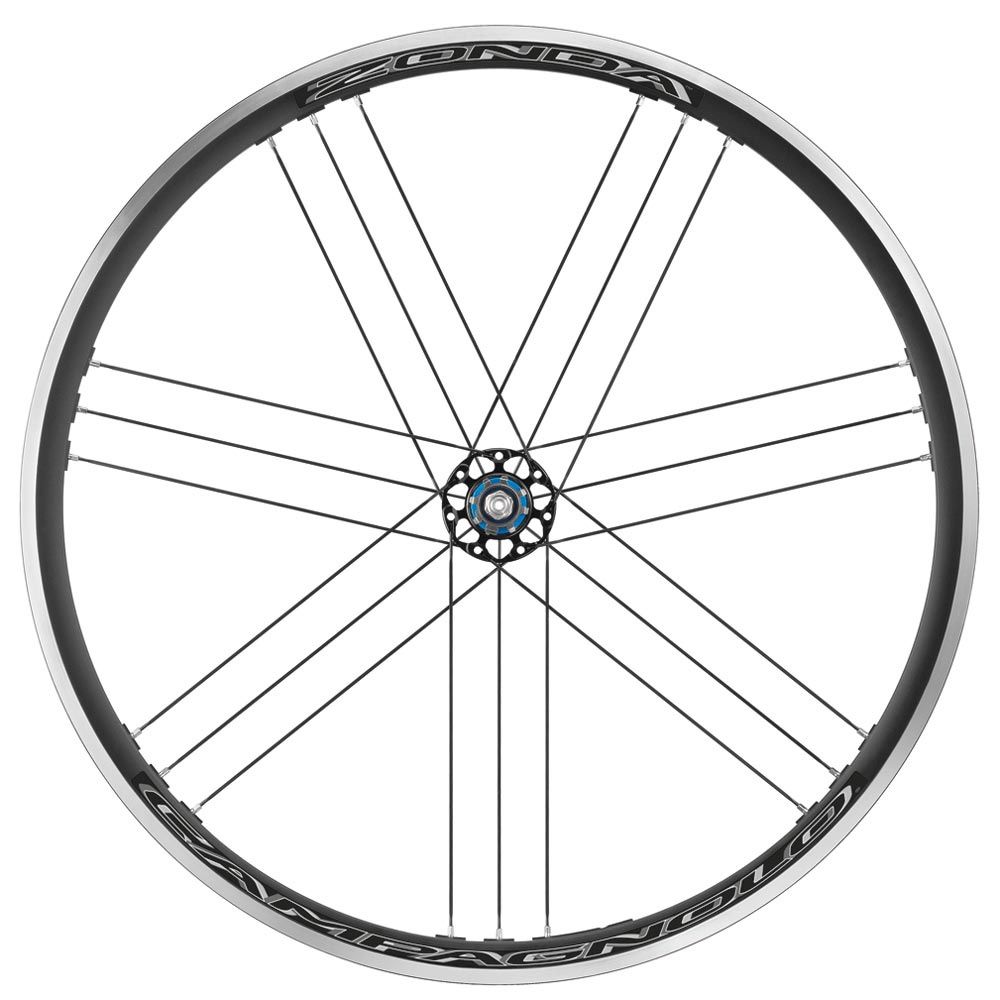

The highly respected Zonda with its new 22.5mm wide rim accepts 25-28mm clincher tyres, giving increased performance, comfort and a more efficient tyre/rim interface. A new rim coupled with the same technologies that put the Zonda in a league of its own, make this wheelset one that punches far above its weight. The Zonda offers this added performance and wider profile while reducing its overall weight more than 10 grams.
The Mega-G3 Spoke pattern is a type of spoke assembly that improves energy transfer between the hub, which reduces stress on the right-hand side which in turn increases the rigidity of the wheel. This is achieved by having twice as many spokes as the left-hand side.
Features:
Dynamic Balance rims, where every point of the rim is counterbalanced by an equal weight on the opposite side, offering maximum stability even at high speeds
Differentiated rim height, 27mm front and 30mm rear (22.5mm internal width)
MOMAG: the external rim profile is free of holes, so the structural integrity of the wheel is increased and there is no need for rim tape
Adjusting lockring with micro setting, for accurate adjustment of the hub
Aluminium hub and aluminium axle for low weight and high stiffness
Oversized flange for increased torsional stiffness
Aerodynamic spokes with exclusive Mega-G3 spoke pattern
Self-locking nipples with anti-rotation system
Weight: 1540g (CA) for Campagnolo, (SH) for Shimano
Assembly
The Zonda C17 Wheel is entirely hand built by a specialised Campagnolo technician and is checked in every tiny detail with electronic tools. This ensures that every wheel conforms to the high standards that Campagnolo pride themselves and will have unbeatable reliability.
Tech Specs
Spokes
Spoke Count: 16 variable-section stainless-steel radial aero spokes (front) / 21 variable-section stainless steel aero spokes (rear) with a 2:1 spoke ratio on the drive side
RDB - Rim Dynamic Balance
Exclusive Mega-G3 spoke lacing pattern
Anti-Rotation system
Self-Locking nipples
Rims
Rim Profile: Differentiated - 24/27mm (front) / 27/30mm (rear)
