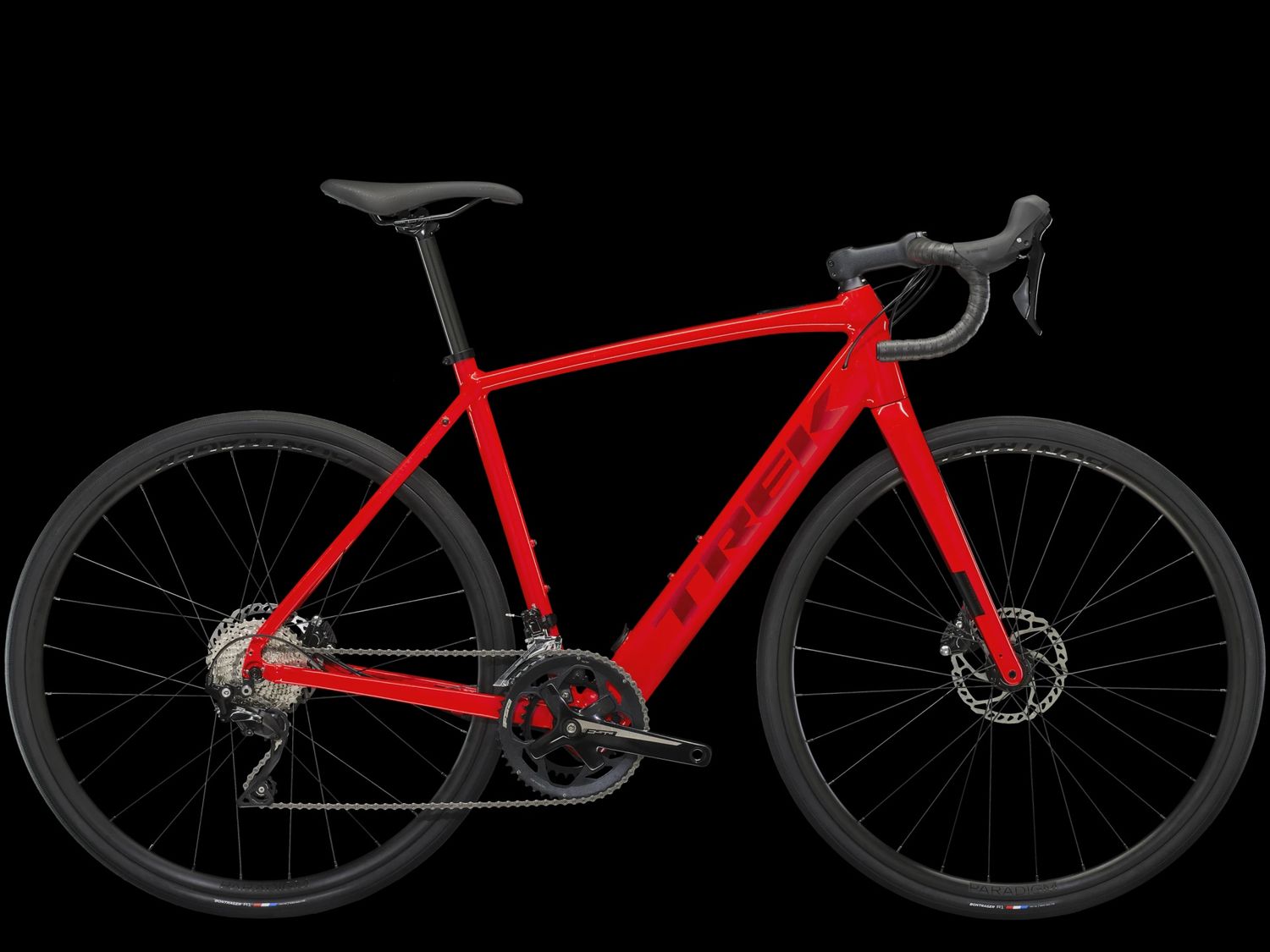

DOMANE+ AL 5
€3,149.00
REDUCED TO CLEAR
Price incl.
VAT (23%) €588.84
In stock: 1 available
Product Details
Brand:
Trek
Frameset
| Frame | 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts |
|---|---|
| Fork | Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle |
| Frame fit | Endurance |
Weight
| Weight | 56 – 14.06 kg/31 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | 250 Wh, integrated in down tube |
|---|---|
| Charger | 2A, 42V output, 100V–240V AC input |
Drivetrain
| *Shifter | Size: 49, 52 Shimano 105 R7025, short-reach lever, 11-speed |
|---|---|
| Size: 54, 56, 58, 61 Shimano 105 R7020, 11-speed |
|
| Front derailleur | Shimano 105 R7000, 31 mm clamp |
| Rear derailleur | Shimano 105 R7000, long cage, 34T max cog |
| *Crank | Size: 49 FSA Vero Pro, 50/34, 165 mm |
| Size: 52 FSA Vero Pro, 50/34, 170 mm |
|
| Size: 54, 56 FSA Vero Pro, 50/34, 172.5 mm |
|
| Size: 58, 61 FSA Vero Pro, 50/34, 175 mm |
|
| Bottom bracket | Torque sensor, threaded, 110 mm spindle |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano 105 HG601, 11-speed |
| Max. chainring size | 2x: 50/34 |
Wheels
| Hub front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rim | Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max tyre size | 38mm without mudguards, 32mm with mudguards |
Components
Save this product for later
DOMANE+ AL 5
